MEASURED BUILDING SURVEYS
A measured building survey provides a highly accurate, scaled representation of a building and typically includes three key components: floor plans, elevations, and sections. Floor plans capture the existing internal layout in detail, showing room dimensions, ceiling heights, wall thicknesses, and the precise positions of doors, windows, staircases, beams, and other structural features.
Elevations offer a clear, scaled view of the building’s exterior, illustrating the roof structure, window and door dimensions, and additional elements such as pipes, gullies, downpipes, and other architectural details.
Sections can be thought of as slicing vertically or horizontally through the building to reveal its internal makeup. This exposes floor and wall thicknesses, roof joists, voids, cavities, and the relationships between different levels - providing insight into the building’s true structural form.
Together, these components create a comprehensive and reliable picture of the building’s framework. This level of detail is essential for effective planning and design, supporting everything from renovation and extension projects to planning applications and conservation work. By supplying accurate, up‑to‑date information, measured building surveys ensure that any proposed changes are well‑informed, appropriately planned, and sensitive to the building’s existing structure. Their precision enables architects, engineers, and contractors to make confident decisions throughout every stage of a project.
DO YOU REQUIRE A MEASURED BUILDING SURVEY?
Let us guide you through the process
-

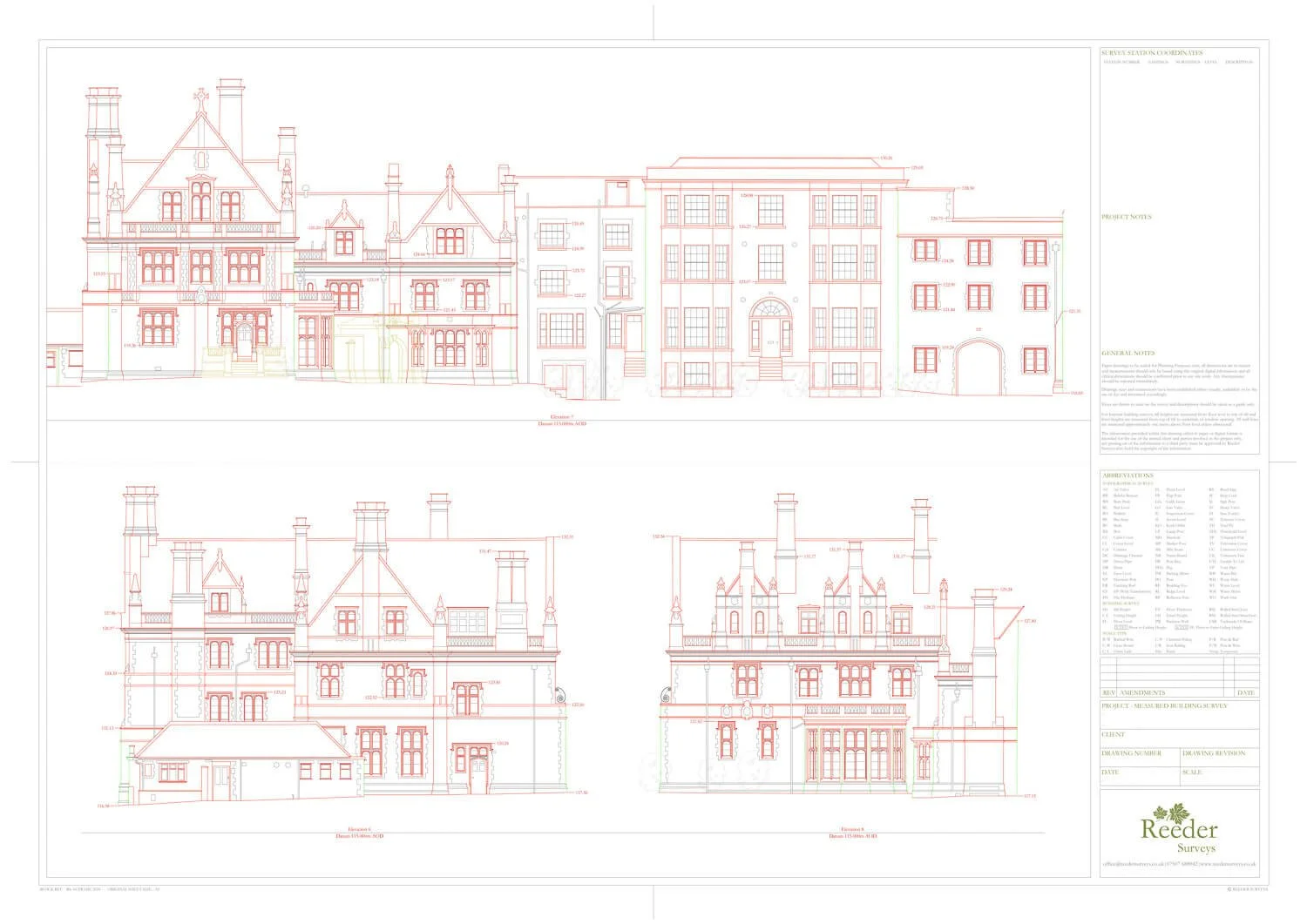

Example Elevations Drawing
-

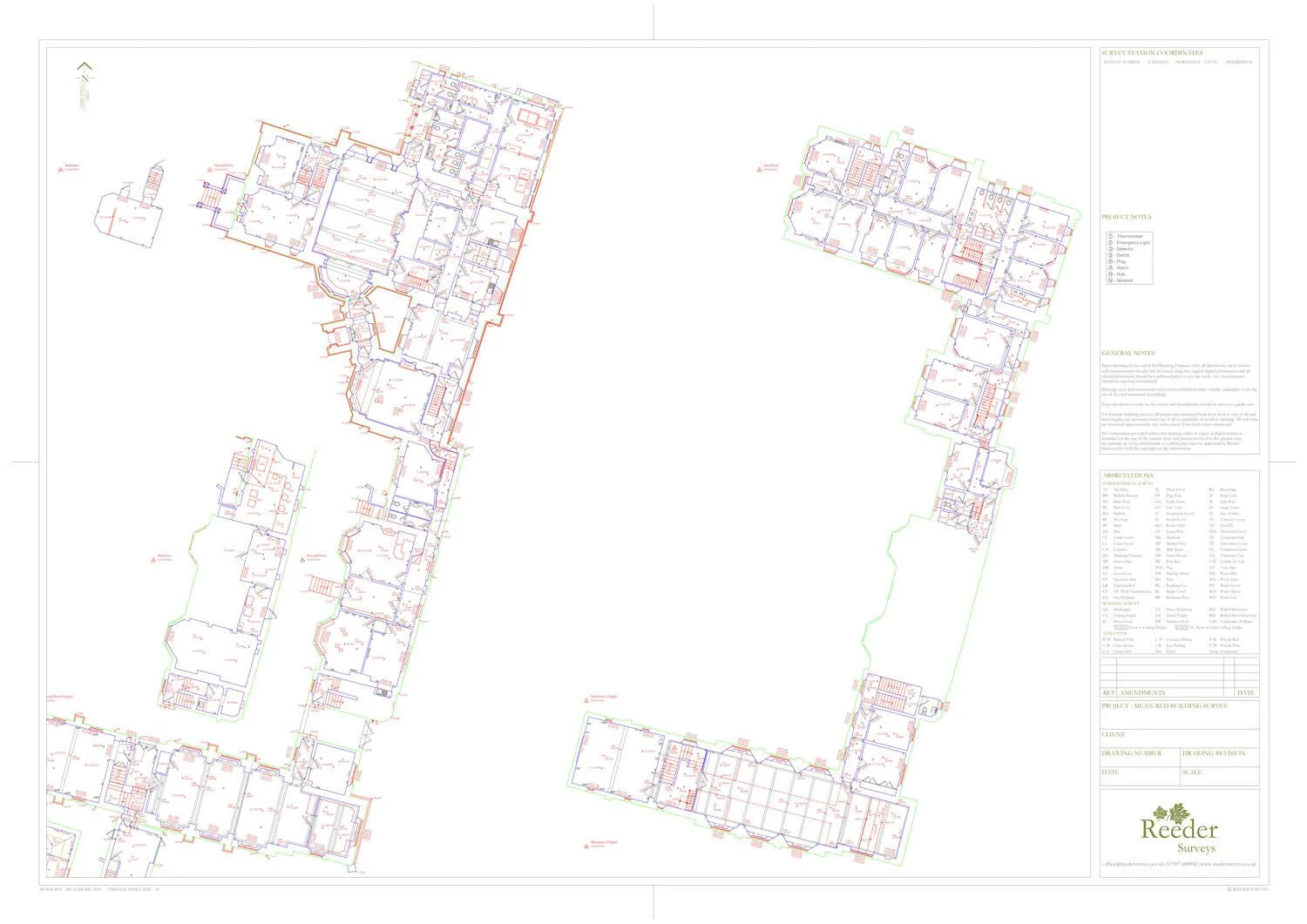

Example Floor Plan Drawing
FAQ’S
-
An accurate measured building survey provides essential data that enables an architect to effectively design any extension or comprehensive redesign of a property. This type of survey will carefully document all room dimensions, wall thicknesses, and important structural details, including the precise locations of doors, windows, and supporting beams, at a minimum. Such detailed information ensures that any architectural plans are based on exact measurements, reducing the risk of errors during construction.
-
A measured building survey provides a precise, scaled drawing of your property, capturing both the internal floor plans and the external elevations in detail. This is different from a building survey, which is presented as a written report and focuses on the condition of a property - typically for home buyers. These reports are offered at different levels, commonly known as Level 2 or Level 3 surveys, each providing varying depths of assessment and insight into the building’s overall condition.
While we do not carry out conditional building surveys ourselves, we are more than happy to recommend a trusted local firm that specialises in this type of work.
-
There are several factors that can influence the overall cost of a measured building survey; however, the primary considerations are usually the size and complexity of the building or buildings that require surveying. Additional elements such as the building’s location, accessibility, and any specific client requirements can also impact the price. Once we have received a clear and detailed project brief, we will be able to thoroughly assess the full scope of work involved and subsequently provide a quotation for your careful consideration.
-
Again, this timeline largely depends on the size and complexity of the project brief and can vary significantly, ranging anywhere from just a few hours for simpler structures to several weeks for more detailed and extensive projects. We can provide you with a clear estimate of the time required at the point of quotation to help you plan accordingly. However, collecting the data is only one part of the overall process; once gathered, this information must then be carefully checked and prepared in order to produce the final drawings. We aim to issue these within 10 workings days of site work having been completed.
-
Internal Floor Plans
Accurate room sizes and layouts
Wall positions and thicknesses
Door and window locations, heights, sizes, and opening directions
Stairs and balustrades
Fixed features such as fireplaces, radiators, built‑in units, columns, structural supports, and visible drainage pipework
Elevations
External building façades captured in detail
Door and window positions and heights
Architectural features such as lintels, sills, decorative elements, and cladding
Rooflines, chimneys, and visible structural details
Drainage features such as pipes, downpipes, flues, and guttering
Ceiling & Floor Levels
Floor level variations across each room
Ceiling heights and slopes
Bulkheads, beams, and structural drops
Sections (Where Required)
Vertical slices through the building showing floor‑to‑ceiling heights
Structural relationships between floors
Roof structure details (if loft or attic information has been requested)
Changes in level, voids, and mezzanines
Roof Plans (Where Required)
Roof shape, pitch, and ridge heights
Chimneys, skylights, dormers, and roof features
Additional Detail (Project‑Dependent)
Associated features such as adjoining buildings, walls, steps, and external drainage detail
-
Final drawings are issued digitally in both AutoCAD and PDF formats, prepared at a scale appropriate to your project requirements. Measured building surveys are ordinarily issued at 1:50 or 1:100.
DISCUSS YOUR PROJECT
If you would like to discuss your project requirements but are unsure about where to start, please do not hesitate to reach out to us. We are here to help you navigate every step of the process with ease and confidence.
